Getting started with eegUtils and the N170

Matt Craddock

09/02/2022

Source: vignettes/single_subj_N170/N170_single_subject.Rmd
## ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
## ✔ dplyr     1.1.4     ✔ readr     2.1.5
## ✔ forcats   1.0.0     ✔ stringr   1.5.1
## ✔ ggplot2   3.5.1     ✔ tibble    3.2.1
## ✔ lubridate 1.9.3     ✔ tidyr     1.3.1
## ✔ purrr     1.0.2
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## ✖ dplyr::filter() masks stats::filter()
## ✖ dplyr::lag()    masks stats::lag()
## ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
##
## Attaching package: 'eegUtils'
##
## The following object is masked from 'package:stats':
##
##     filter

In this tutorial, we’ll be going through the analysis of a single dataset from the ERP Core N170 data.

We’ll be using the data from a single subject. If you don’t have the data already, you can download it from the Open Science Framework or alternatively download all of the data using the erpcore package.

Note that some understanding of EEG processing is assumed - we won’t go through the justification for many of the steps or reasons for choosing particular parameters, just the mechanics of actually doing them.

Standard preprocessing

Let’s consider the steps we need to take to process our dataset. We will broadly follow the steps taken by the ERP Core team in their analysis of this data.

  1. Importing the data
  2. Downsampling from 1024 Hz to 256 Hz.
  3. Rereference to the average reference.
  4. Perform a high-pass filter at .1 Hz.
  5. Epoching around the stimulus events.
  6. Artefact rejection

Importing the data

The data is stored in EEGLAB’s .set format. We can import that using the import_set() function. After importing, we add some standard channel locations - we overwrite those included in the original file, which are actually all missing values rather than coordinates!

We’ll use the data from “sub-003”.

# Set up basic file locations
sub_file <- "sub-003_task-N170_eeg.set"
single_data <- import_set(file_name = sub_file,
                          participant_id = "sub-003")
## Importing from EEGLAB .set file.
## Importing data from .fdt file.
single_data <- electrode_locations(data = single_data,
                                   overwrite = TRUE)
## Electrodes not found: HEOG_left HEOG_right VEOG_lower
# browse_data(single_data) uncomment this line to use the data browser!

The function informs us that some electrodes don’t have matching locations in our standard set. These are the HEOG and VEOG electrodes. This isn’t something to worry about.

Since the .set file only contained data with a single epoch, it’s imported as a continuous, eeg_data object. It has 33 electrodes, and a sampling rate of 1024 Hz. It is also unreferenced.

We could start our preprocessing now, but before we do anything else, we have to attend to something important. According to the ERP Core documentation, there was a delay of 26 ms between the onset of the trigger and the onset of the visual stimulus. We need to modify the event codes stored in the data to compensate for this delay.

Fixing the event codes.

To make sure our ERPs are correctly timed, we need to modify the triggers, shifting them 26 ms later in time. The safest way to do that is going to be shift everything by whatever number of samples corresponds closest to 26 ms. The sampling rate of this data is 1024 Hz, which translates to one sample every 0.977 ms. Divide 26 by this, and we have 26.624 samples. It works out nicely around a sample per ms, given that we have a 1024 Hz sampling rate, but of course that would differ if we had a different sampling rate!

In the ERP Core scripts, they take the floor of this, so shift the triggers by 26 samples.

Events coded in the data can be inspected directly using the events() function. Let’s take a look.

events(single_data)
## # A tibble: 642 × 4
##    event_type event_onset urevent event_time
##         <dbl>       <dbl>   <dbl>      <dbl>
##  1        202        3101       1       3.03
##  2        202        4854       2       4.74
##  3         56        9207       3       8.99
##  4        201        9728       4       9.50
##  5        137       10725       5      10.5
##  6        201       11072       6      10.8
##  7        144       12193       7      11.9
##  8        201       12620       8      12.3
##  9         71       13711       9      13.4
## 10        201       14094      10      13.8
## # ℹ 632 more rows

The important one here is event_onset. This tells us in samples when the event code was sent, while event_type tells us what the code was. event_time is the time in seconds from the start of the recording that the event code was sent.

Note that they only shift the stimulus onset triggers. We’ll do the same here, using some base R code to modify only those triggers with values from 1 to 80 or from 100 to 180, which correspond to stimulus onset triggers.

sample_shift <- floor(26 / (1000/single_data$srate)) # round down
orig_events <- events(single_data)
orig_events$event_onset <-
  with(orig_events,
       ifelse(event_type %in% c(1:80,
                                100:180),
              event_onset + sample_shift,
              event_onset))
orig_events$event_time <- (orig_events$event_onset - 1) * (1/1024)
events(single_data) <- orig_events
events(single_data)
## # A tibble: 642 × 4
##    event_type event_onset urevent event_time
##         <dbl>       <dbl>   <dbl>      <dbl>
##  1        202        3101       1       3.03
##  2        202        4854       2       4.74
##  3         56        9233       3       9.02
##  4        201        9728       4       9.50
##  5        137       10751       5      10.5
##  6        201       11072       6      10.8
##  7        144       12219       7      11.9
##  8        201       12620       8      12.3
##  9         71       13737       9      13.4
## 10        201       14094      10      13.8
## # ℹ 632 more rows

Now that we’ve done that initial step, let’s look at what else we need to.

Downsampling

ERP Core downsample from 1024 Hz to 256 Hz. We can use the eeg_downsample() for that. We need to tell it how much to downsample. We pass the q argument to give it a downsampling factor. 1024 / 4 is 256. We’ll do this first to speed up subsequent steps.

Note that for this step, we probably want to use multiple processor threads or cores to speed things up. We can do that via the future library. Simply load the future library, then make an appropriate plan() to use your computer’s parallel processing capabilities. We only need to do this once - all subsequent steps will use parallel processing where they can. You definitely want to do this before filtering or downsampling, which can take quite a long time otherwise.

library(future)
plan(multisession, workers = 4)
single_data <- eeg_downsample(data = single_data,
                              q = 4)
## Downsampling from 1024Hz to 256Hz.

Referencing

ERP Core reference to the average of all EEG electrodes. We can do this with the eeg_reference() function. We can specify which electrodes to reference to using the ref_chans argument. By default, the function will use the average of all electrodes if we don’t tell it otherwise, but we can also be explicit and use the special keyword “average”.

single_data <- eeg_reference(data = single_data,
                             ref_chans = "average")

Filtering

The ERP Core perform a high-pass Butterworth IIR filter at .1 Hz, with a 12 dB/octave roll-off (filter order 2). It removes very low-frequency activity, long slow drifts, from the data. This is applied as a non-causal filter - run forwards and then backwards - to prevent temporal shifts in the data.

The eeg_filter() function can be used for high-pass, low-pass, bandpass or bandstop filtering. Which one is used depends on the low_freq and high_freq arguments. These mark the low and high passband edges respectively. If we supply only the low_freq argument, we are asking for a high-pass filter - everything above that low edge is passed. The frequency we specify is the half-amplitude, 3 dB cutoff point. We can ask for iir or fir filters using the method argument. In addition, we probably want to demean the data before high-pass filtering.

Note that this is done to the continuous data to prevent edge artefacts creeping in, which can be a problem when the data is epoched.

single_data <- eeg_filter(data = single_data,
                          low_freq = .1,
                          method = "iir",
                          order = 2,
                          demean = TRUE)
## High-pass IIR filter at 0.1 Hz
## Effective filter order: 4 (two-pass)
## Removing channel means...

Epoching

Now we have our high-pass filtered, continuous data. Our next step will be to epoch it. Here we diverge from the ERP Core pipeline. At this point, they perform an Independent Component Analysis on the data and use it for artefact rejection. We’ll hold back on that until after epoching.

We can use the epoch_data() function to create epochs. We need to supply the function with the relevant timelocking events. In this case, those are event codes from 1 to 80 and from 101 to 180. These codes tell us exactly which stimulus was presented on each trial. The stimuli from 1 to 40 are Intact Faces, from 41 to 80 are Intact Cars, from 101 to 140 are Scrambled Faces, and from 141 to 180 are Scrambled Cars.

Let’s use epoch_data() to create epochs that last from 200 ms before stimulus onset until 800 ms after stimulus onset. We won’t perform baseline correction just yet. Note that it is possible to label the epochs when using epoch_data() using the epoch_labels argument. You have to supply one label for each event code. Here, there are 160 event codes. Fortunately, it is quite easy to construct an appropriate character vector using the rep() function. I use it here to create a vector with 40 of each combination of the two variables - Intact_Faces, Intact_Cars, Scrambled_Faces, Scrambled_Cars.

epoched_data <- epoch_data(single_data,
                           events = c(1:80,
                                      101:180),
                           time_lim = c(-.2, .8),
                           baseline = "none",
                           epoch_labels = rep(
                             c("Intact_Faces",
                               "Intact_Cars",
                               "Scrambled_Faces",
                               "Scrambled_Cars"),
                             each = 40)
                           )
## Adjusting output limits to match sampling rate.
## Output limits:  -0.19921875 0.80078125
## No baseline removal performed.
## Creating 320 epochs.
epoched_data
## Epoched EEG data
##
## Number of channels   : 33
## Number of epochs : 320
## Epoch limits     : -0.199 - 0.801 seconds
## Electrode names      : FP1 F3 F7 FC3 C3 C5 P3 P7 P9 PO7 PO3 O1 Oz Pz CPz FP2 Fz F4 F8 FC4 FCz Cz C4 C6 P4 P8 P10 PO8 PO4 O2 HEOG_left HEOG_right VEOG_lower
## Sampling rate        : 256  Hz
## Reference        : average

This creates 320 epochs. We can inspect metadata for the epochs using the epochs() function, which will show us information like the participant_id and the label for each epoch. This is an important structure, as it allows us to easily compare different conditions later on using functions like plot_timecourse(), and helps us keep track of which data belongs to which participant when we have group data.

epochs(epoched_data)
## # A tibble: 320 × 5
##    epoch participant_id recording             event_type epoch_labels
##    <dbl> <chr>          <chr>                      <dbl> <chr>
##  1     1 sub-003        sub-003_task-N170_eeg         56 Intact_Cars
##  2     2 sub-003        sub-003_task-N170_eeg        137 Scrambled_Faces
##  3     3 sub-003        sub-003_task-N170_eeg        144 Scrambled_Cars
##  4     4 sub-003        sub-003_task-N170_eeg         71 Intact_Cars
##  5     5 sub-003        sub-003_task-N170_eeg        163 Scrambled_Cars
##  6     6 sub-003        sub-003_task-N170_eeg          4 Intact_Faces
##  7     7 sub-003        sub-003_task-N170_eeg        143 Scrambled_Cars
##  8     8 sub-003        sub-003_task-N170_eeg        124 Scrambled_Faces
##  9     9 sub-003        sub-003_task-N170_eeg        178 Scrambled_Cars
## 10    10 sub-003        sub-003_task-N170_eeg         23 Intact_Faces
## # ℹ 310 more rows

Now, we know our design is a 2×22 \times 2 design. We have two variables: Intact or Scrambled stimuli, and images of Faces or Cars.

Let’s use some tidyverse magic to split our epoch_labels column into two variables that code for this structure. This is straightforward, since the values of the column use _ to separate the values of each factor.

epochs(epoched_data) <-
  separate(
    epochs(epoched_data),
    col = epoch_labels,
    into = c("Intact",
             "Type")
    )
epochs(epoched_data)
## # A tibble: 320 × 6
##    epoch participant_id recording             event_type Intact    Type
##    <dbl> <chr>          <chr>                      <dbl> <chr>     <chr>
##  1     1 sub-003        sub-003_task-N170_eeg         56 Intact    Cars
##  2     2 sub-003        sub-003_task-N170_eeg        137 Scrambled Faces
##  3     3 sub-003        sub-003_task-N170_eeg        144 Scrambled Cars
##  4     4 sub-003        sub-003_task-N170_eeg         71 Intact    Cars
##  5     5 sub-003        sub-003_task-N170_eeg        163 Scrambled Cars
##  6     6 sub-003        sub-003_task-N170_eeg          4 Intact    Faces
##  7     7 sub-003        sub-003_task-N170_eeg        143 Scrambled Cars
##  8     8 sub-003        sub-003_task-N170_eeg        124 Scrambled Faces
##  9     9 sub-003        sub-003_task-N170_eeg        178 Scrambled Cars
## 10    10 sub-003        sub-003_task-N170_eeg         23 Intact    Faces
## # ℹ 310 more rows

And BOOM! We have our nicely epoched dataset for a single participant. We’re not quite finished, as we should do some artefact rejection. But let’s quickly do a few exploratory plots with this data.

Exploratory plots

We’ll start off with some topographical plots. We know this data is meant to show the N170, and from the ERP Core papers we know this is maximal in this data from approximately 130-150 ms after stimulus onset. So let’s plot the topography for each condition at that time. eegUtils represents time in seconds.

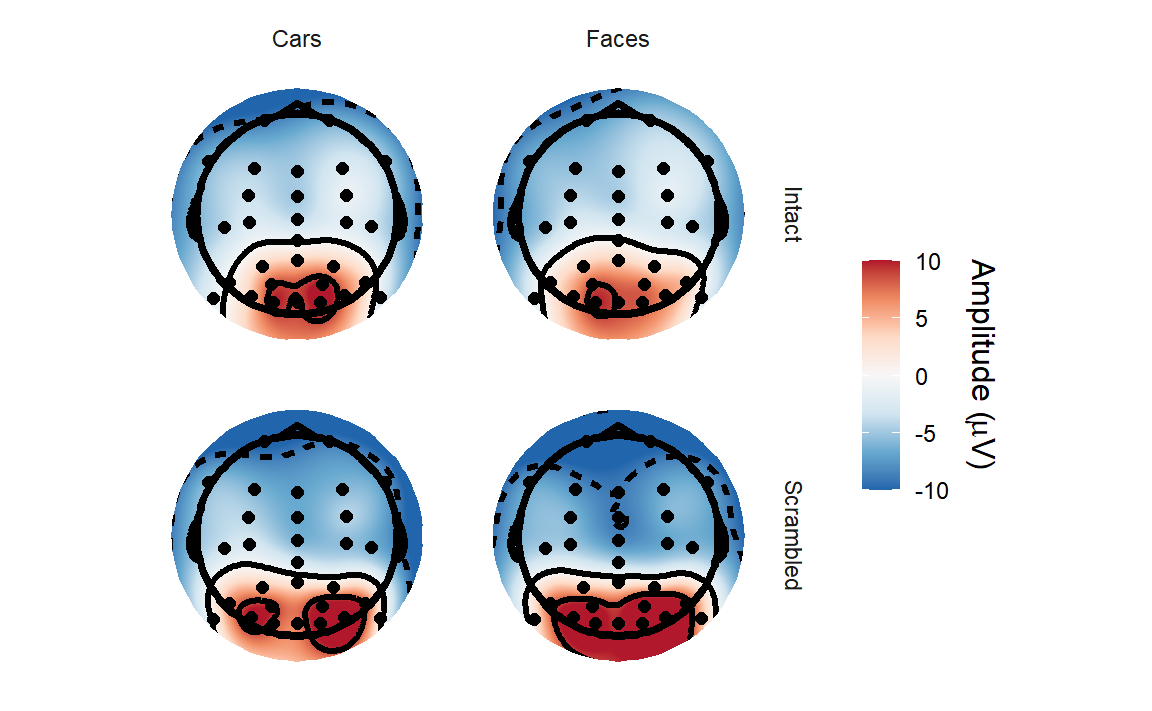

The topoplot() function produces a ggplot2 object. Here we’ll use facetting to display different topographies for each condition. Note that we have to explicitly enable this by adding a groups argument and specifying which variables we want to group on.

epoched_data <- rm_baseline(epoched_data,
                            c(-.1, 0))
## Baseline: -0.1 - 0s
topoplot(epoched_data,
         time_lim = c(.13, .15),
         groups = c("Intact",
                    "Type"),
         limits = c(-10, 10)) +
  facet_grid(Intact~Type)
## Creating epochs based on combinations of variables: participant_id Intact Type
## Using electrode locations from data.
## Removing channels with no location.
## Plotting head r 95 mm

It’s a little tricky to make out much of a difference between conditions, although it’s clear that amplitudes are higher over the occipital electrodes.

Let’s create a butterfly plot showing the ERP for every channel, all at once. We can use the plot_butterfly() function to do that.

plot_butterfly(epoched_data)
## Creating epochs based on combinations of variables: participant_id Intact Type

You can clearly see some channels have great big signals relative to everything else. These channels are capturing blinks and saccades. We’d expect that on the HEOG and VEOG related channels, which are closest to the eyes.

Let’s plot one of the VEOG and one of the HEOG channels.

plot_timecourse(
  epoched_data,
  electrode = "VEOG_lower",
  baseline = c(-.1, 0)
  )
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id

plot_timecourse(
  epoched_data,
  electrode = "HEOG_left",
  baseline = c(-.1, 0)
  )
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id

From these two plots, it’s very clear that there is a big vertical eye movement signal. But HEOG looks much less clear - the signals don’t show typical eye-movement patterns and look much more ERP-like.

Let’s restrict our butterly plot to the first 30 channels, which are the scalp channels.

plot_butterfly(
  select(epoched_data, 1:30)
  )
## Creating epochs based on combinations of variables: participant_id Intact Type

There are still a couple of channels clearly dominated by eye movements - likely channels FP1 and FP2, which are over the eyes. And we can clearly see the effect of the eye movements on the topography around that time.

topoplot(
  epoched_data,
  time_lim = c(.6, .8)
  )
## Creating epochs based on combinations of variables: participant_id Intact Type
## Using electrode locations from data.
## Removing channels with no location.
## Plotting head r 95 mm

We’d probably want to do something about that - either removal of contaminated trials or some sort of eye movement correction using Independent Component Analysis

Artefact rejection

Independent Component Analysis

In the ERP Core, Independent Component Analysis is used to isolate and correct for artefactual contributions to the EEG signal from eye movements. They run ICA on the continuous data, after performing a few artefact rejection steps based on amplitude thresholds to remove particuarly low quality data segments, as well as removing data from between blocks.

We’ll do it a little differently - we’ve already arrived at our epoched data, and will run ICA on that. We could do some artefact rejection on the epoched data before running the ICA (for example, we could use ar_FASTER() to automatically detect bad channels and epochs), but this time we’ll skip that and go straight to ICA. We’ll use the extended Infomax algorithm for our decomposition. Note that since the data is average referenced, it is not full rank - the signals are not fully linearly independent of each other, but dependent on the reference signal. We’ll use the pca argument to reduce our data to 32 components, one fewer than the number of channels, and then run ICA.

ica_imax <- run_ICA(epoched_data,
                    pca = 32,
                    method = "infomax")
## Reducing data to 32 dimensions using PCA.
## Running extended-Infomax (ica).

There are several interactive tools built in, like view_ica() and browse_data(), that allow you to visually inspect the results of the ICA decomposition, displaying features such as topographies and ERPs. With experience, you will learn to discriminate between different types of component. Some capture genuine brain activity, while some capture artefacts. For this tutorial, we will use an automatic method to help us detect eye movement related components.

Automatically rejecting eye movement components

There are also some ar_* functions for detecting particular artefactual types of component automatically. One of those is ar_eogcor(). Given the decomposition and the original data, this function searches for components that have a high correlation with the eye channels. We construct bipolarized channels from the two HEOG channels - HEOG_left and HEOG_right - and for VEOG, the VEOG_lower and FP2 channels, since there was no VEOG_upper.

high_cor <-
  ar_eogcor(decomp = ica_imax,
            data = epoched_data,
            HEOG = c("HEOG_left", "HEOG_right"),
            VEOG = c("VEOG_lower", "FP2"))
## Estimated HEOG threshold: 0.64
## Estimated VEOG threshold: 0.74
## Components with high EOG correlation: Comp001

high_cor
## [1] "Comp001"

A lot of channels show some correlation with HEOG, but nothing particularly striking - horizontal eye movements are often much harder to separate than blinks or vertical eye movements, and are possibly spread across many components here.

For most components, the correlation was very low for VEOG. But Component 1 crosses the (automatically determined) threshold, so we should inspect it further. Let’s look at a few plots.

topoplot(ica_imax,
         1)
## Using electrode locations from data.
## Removing channels with no location.
## Plotting head r 95 mm

plot_timecourse(ica_imax,
                1)
## Creating epochs based on combinations of variables: participant_id Intact Type

erp_image(ica_imax,
          "Comp001")

The topoplot shows the classic vertical eye movement topography - large signal at frontal electrodes and a front-to-back gradient. The ERP seems to show this component captures an eye movement or blink toward the end of the trial, and this is also clear on the ERP image. These are late movements, after stimulus offset.

So having identified a strong candidate for a component that captures eye movements, what next? Well, we can recreate the data without that component using the apply_ica() function!

We can either do that directly from the eeg_ICA object, which includes all the relevant parts of the decomposition, or by applying the weights from our ICA to another dataset. This is sometimes useful - for example, sometimes ICA provides much better decompositions on data filtered with a 1 Hz high-pass filter. But a 1 Hz high-pass filter is much too strong to use for ERPs - it seriously messes with the waveforms. So one possibility is to filter the data at 1 Hz, run ICA on the filtered data, then apply the weights to a dataset with a more reasonable high-pass filter, such as .1 Hz.

Here, we’ll just go ahead and reconstruct from the eeg_ICA object directly. We specify which components to remove, rather than which to keep, as that’s what we typically want to do.

corrected_data <-
  apply_ica(data = ica_imax,
            comps = "Comp001")

We can now plot our VEOG_lower and HEOG_left channels again, to see what difference it made.

plot_timecourse(
  corrected_data,
  electrode = "VEOG_lower",
  baseline = c(-.1, 0)
  )
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id

plot_timecourse(
  corrected_data,
  electrode = "HEOG_left",
  baseline = c(-.1, 0)
  )
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id

There was a big impact on the VEOG channel, but very little impact on HEOG. This is what we’d expect - the ICA clearly captured vertical eye movements, but didn’t find anything clear for horizontal eye movements.

Let’s have a look at the butterfly plot and topographies from our corrected data. We’ll baseline correct the data first.

corrected_data <- rm_baseline(corrected_data,
                              time_lim = c(-.1, 0))
## Baseline: -0.1 - 0s
plot_butterfly(corrected_data)
## Creating epochs based on combinations of variables: participant_id Intact Type

topoplot(epoched_data,
         time_lim = c(.6, .8),
         limits = c(-5, 5)) +
  ggtitle("Original data")
## Creating epochs based on combinations of variables: participant_id Intact Type
## Using electrode locations from data.
## Removing channels with no location.
## Plotting head r 95 mm

topoplot(corrected_data,
         time_lim = c(.6, .8),
         limits = c(-5, 5)) +
  ggtitle("Corrected data")
## Creating epochs based on combinations of variables: participant_id Intact Type
## Using electrode locations from data.
## Removing channels with no location.
## Plotting head r 95 mm

You can see a huge difference between the two. I’ve deliberately kept the colour range the same so that you can see the true extent of the difference. The large eye movement related artefacts seem to be mostly gone after correction. It’s not perfect - there is still some residual noise - but it still removed a huge amount of noise.

Now let’s see the topographies in the N170 window.

topoplot(corrected_data,
         time_lim = c(.13, .15),
         groups = c("Intact",
                    "Type"),
         limits = c(-10, 10)) +
  facet_grid(Intact ~ Type)
## Creating epochs based on combinations of variables: participant_id Intact Type
## Using electrode locations from data.
## Removing channels with no location.
## Plotting head r 95 mm

Oddly, the topographies in our period of interest might look a little worse at a glance, as now there seems to be small positive signal around the eye frontal channels. But that’s because a substantial negative signal from eye movements has been removed.

Automated rejection and correction of channels and epochs

As one last step, let’s try running the FASTER algorithm using ar_FASTER(). This is an automated method of checking for a variety of issues with signal quality: 1) It checks for globally bad individual channels - i.e. channels that are consistently bad compared to other channels across the whole recording - and removes or interpolates those. 2) It checks for globally bad epochs - epochs which are very noisy compared to other epochs - and removes those. 3) It also checks for bad channels within each epoch, and interpolates those. This is helpful because noise is frequently intermittent. A given channel isn’t necessarily bad all the time - it may just be noisy on a few epochs. By interpolating it during only those time periods, you preserve the relatively clean data from that channel at other time periods. Similarly, the noise on a given trial may be restricted to only a few electrodes, so it is better to simply interpolate that electrode than remove the entire trial.

autorej_data <-
  ar_FASTER(corrected_data,
            exclude = c(31:33))
## Excluding channel(s):HEOG_left HEOG_right VEOG_lower
## Globally bad channels: P8
## Coords missing for electrodes HEOG_left HEOG_right VEOG_lower
## Globally bad epochs: 56 76 122 123 125 134 161 195 233 236 253 262
## 226 of 308 epochs had at least one channel interpolated.
## Max number of channels interpolated in one epoch: 3

The algorithm picked out P8 as a globally bad channel, and interpolates it completely. It also picked out a number of epochs which could not be saved, removing them automatically. In addition, if found 220 epochs where it was worth interpolating some channels rather than removing the epoch entirely.

Comparing the original and corrected data

Let’s focus in on one specific channel. We can use the plot_timecourse() function, and tell it which electrode we want to plot. P10 is a good candidate for looking for a face-specific N170 - it’s over posterior lateral occipital cortex, where the Fusiform Face Area is located. We’ll focus in on a specific time range from -.1 s to .3 s around stimulus onset, and we’ll do baseline correction. With some ggplot2 magic, we’ll use different colours for Cars and Faces, and different linetypes for Intact and Scrambled images.

First, let’s look at the uncorrected data.

plot_timecourse(
  epoched_data,
  electrode = "P10",
  mapping = aes(colour = Type,
                linetype = Intact),
  baseline = c(-.1, 0),
  time_lim = c(-.1, .3)
  )
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id Type Intact

It’s quite noisy - it is from a single participant after all, and we haven’t done any artefact rejection yet.

But even with the noise, there’s a noticeable decline in amplitudes for both intact faces and cars - slightly later, for the latter - relative to scrambled faces and cars.

Let’s now compare the ERPs at P10 for our original, ICA corrected, and FASTER corrected data.

plot_timecourse(
  epoched_data,
  electrode = "P10",
  mapping = aes(colour = Type,
                linetype = Intact),
  baseline = c(-.1, 0),
  time_lim = c(-.1, .5)
  ) +
  ggtitle("Original data")
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id Type Intact

plot_timecourse(
  corrected_data,
  electrode = "P10",
  mapping = aes(colour = Type,
                linetype = Intact),
  baseline = c(-.1, 0),
  time_lim = c(-.1, .5)
  ) +
  ggtitle("ICA corrected data")
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id Type Intact

plot_timecourse(
  autorej_data,
  electrode = "P10",
  mapping = aes(colour = Type,
                linetype = Intact),
  baseline = c(-.1, 0),
  time_lim = c(-.1, .5)
  ) +
  ggtitle("ICA and FASTER corrected data")
## Baseline: -0.1 - 0s
## Creating epochs based on combinations of variables: participant_id Type Intact

We can see straight away that our original data was heavily affected by eye movements, which are clearly in evidence towards the end of the ERP. ICA correction of eye movements had the biggest effect in reducing those artefacts.

What next?

This tutorial covered the processing of a single dataset, going from continuous data to an epoched, artefact-corrected dataset, ready for further use.

One thing you could do is convert the data to a data.frame using as.data.frame(). This makes it easy to get the data in a standard format for use with just about any R function you could imagine.

head(
  as.data.frame(corrected_data)
  )
##         FP1         F3        F7        FC3        C3         C5         P3
## 1 -4.918215   2.607501 12.914789 -11.769973 -2.929508 -2.1002335  2.5623433
## 2  3.284854  -7.741160 10.040508 -11.393484 -3.676040 -0.8012886  0.2974999
## 3  7.634606 -12.420354  6.545192 -14.722391 -4.554828 -3.2928941  0.3563943
## 4  9.557865 -13.166525  5.546836 -12.864380 -5.550610 -2.9464081 -2.8844542
## 5  1.271142 -19.406360  3.433216  -5.995284 -1.928202  1.6790618 -3.3928845
## 6 -7.672153  -7.273593  7.844320  -3.868522  1.391638  3.6181119 -3.6480824
##           P7        P9        PO7       PO3         O1          Oz         Pz
## 1  1.1209619 10.732692 -0.1742992  2.019453  4.2239398  4.58045020 -0.1503262
## 2  0.0798196  7.791858 -2.3630911 -1.259310 -0.3648448 -2.54681613 -2.8521538
## 3 -0.0636548  7.398417 -3.7858564 -2.289407 -1.8346870 -0.01300358 -3.4383305
## 4 -0.4540354  6.381576 -5.2486966 -2.143878 -1.1645908  2.77910278 -1.7911478
## 5 -3.8973024  3.147973 -6.7718674 -2.240591 -2.0161813  1.40230432 -0.9932277
## 6 -4.3395225  3.598482 -7.7504763 -3.881101 -2.5397884 -1.35154112 -2.2447011
##         CPz        FP2        Fz         F4        F8        FC4        FCz
## 1 -3.771159 9.16061050 -8.275691 -0.4721051  8.639158 -9.5193433 -11.018538
## 2 -4.293270 4.40599262 -6.825932  6.4610650  8.733601  1.1439558  -7.681389
## 3 -5.152885 3.05625549 -3.748772  0.1227696 12.370066  2.0688119  -3.650893
## 4 -5.321949 0.07792673 -2.584166  4.6348850 10.993883  0.1471320  -3.178098
## 5 -4.817042 1.56222111 -2.148851  6.8607124  3.824447 -0.3889318  -3.249116
## 6 -4.475702 6.05525628 -2.267183 -0.1683632  8.466212 -3.1855276  -1.895252
##          Cz         C4        C6         P4          P8       P10        PO8
## 1 -9.593433 -11.549220 -8.803203 -7.1652201   1.1361546  2.435942  0.3897937
## 2 -7.989438  -6.892331 -5.171625 -7.4373582  10.4136403 10.624990 -4.3656774
## 3 -6.701339  -4.707480 -4.792048 -5.0186656  -0.1776135 13.001121 -0.1254546
## 4 -6.221984  -5.746008 -7.767344 -3.9501789  -2.1392469  7.197405  3.2033713
## 5 -6.148713  -4.858505 -2.197561 -1.9902390   6.8917263 10.211455  3.5230553
## 6 -5.603202  -3.039225  2.832010 -0.4929733 -11.2457749 11.712352  1.2432508
##          PO4         O2 HEOG_left HEOG_right VEOG_lower       time epoch
## 1 -1.7650513  0.3317207 16.156146   6.181929   8.781936 -0.1992188     1
## 2 -3.7886754 -5.0099955 12.521743   5.957762  10.696589 -0.1953125     1
## 3 -2.8131917 -1.8750412  9.804172  12.220627  10.600356 -0.1914062     1
## 4 -0.9658825  2.6846994 12.959973   9.817942  10.106985 -0.1875000     1
## 5  2.1369327  2.9971658 13.091465   4.949168   5.458813 -0.1835938     1
## 6  0.5209173 -3.0606154 14.988816   8.377120   9.354812 -0.1796875     1
##   participant_id             recording event_type Intact Type
## 1        sub-003 sub-003_task-N170_eeg         56 Intact Cars
## 2        sub-003 sub-003_task-N170_eeg         56 Intact Cars
## 3        sub-003 sub-003_task-N170_eeg         56 Intact Cars
## 4        sub-003 sub-003_task-N170_eeg         56 Intact Cars
## 5        sub-003 sub-003_task-N170_eeg         56 Intact Cars
## 6        sub-003 sub-003_task-N170_eeg         56 Intact Cars

You can also request that the data be output directly in long format.

head(
  as.data.frame(corrected_data,
                long = TRUE)
)
## # A tibble: 6 × 11
##     time epoch electrode amplitude     x      y participant_id recording
##    <dbl> <dbl> <chr>         <dbl> <dbl>  <dbl> <chr>          <chr>
## 1 -0.199     1 FP1           -4.92 -30.6  88.9  sub-003        sub-003_task-N17…
## 2 -0.199     1 F3             2.61 -40.9  43.9  sub-003        sub-003_task-N17…
## 3 -0.199     1 F7            12.9  -84    50.5  sub-003        sub-003_task-N17…
## 4 -0.199     1 FC3          -11.8  -45.8  17.6  sub-003        sub-003_task-N17…
## 5 -0.199     1 C3            -2.93 -45.3  -7.99 sub-003        sub-003_task-N17…
## 6 -0.199     1 C5            -2.10 -68.9 -12.2  sub-003        sub-003_task-N17…
## # ℹ 3 more variables: event_type <dbl>, Intact <chr>, Type <chr>

Of course, this includes data for every single trial. If you just wanted the ERPs, you could first average the epoched data to create an eeg_evoked object:

eeg_average(corrected_data)
## Creating epochs based on combinations of variables: participant_id Intact Type
## Evoked EEG data
##
## Number of channels   :    33
## Epoch limits     : -0.199 - 0.801 seconds
## Electrode names      :    FP1 F3 F7 FC3 C3 C5 P3 P7 P9 PO7 PO3 O1 Oz Pz CPz FP2 Fz F4 F8 FC4 FCz Cz C4 C6 P4 P8 P10 PO8 PO4 O2 HEOG_left HEOG_right VEOG_lower
## Sampling rate        :    256  Hz

By default, this will give you an ERP for each unique condition, based on the variables stored in the epochs().

From here, you’d most likely want to combine it with other datasets to create group level data. You can of course do that by converting them all into their own data.frame and combining them afterwards. But you can also combine the individual eeg_epochs objects into eeg_group objects. We’ll cover that in a later tutorial.
